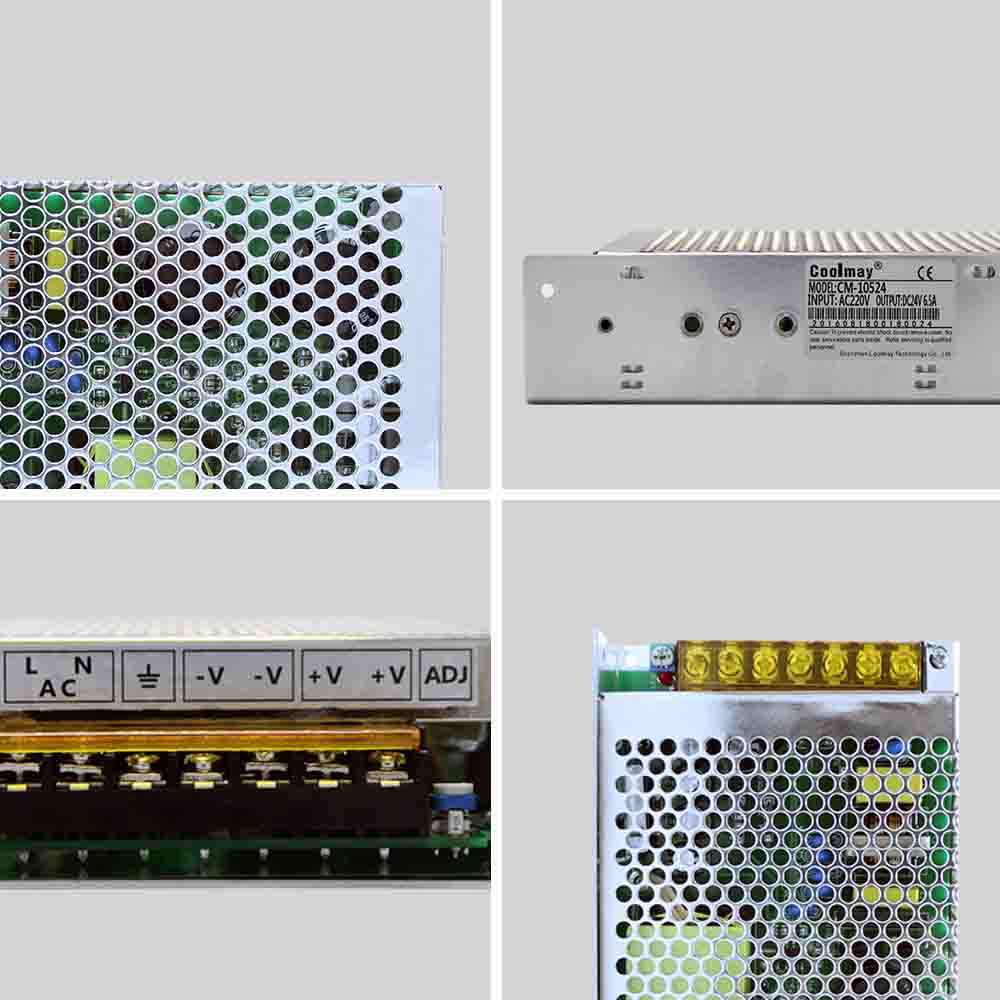

Pwm Pulse 6.5A PLC Switching Power Supply 24V Overvoltage Protection

Name: Pwm Pulse 65A PLC Switching Power Supply 24V Overvoltage Protection
Brand: COOLMAY
Price: 17 USD

Pwm Pulse 6.5A PLC Switching Power Supply 24V Overvoltage Protection Manufactures

Brand Name : COOLMAY

Model Number : CM15024

Certification : NULL

Place of Origin : Shenzhen, China

MOQ : 1 PEC

Price : USD 17-19 per pec

Payment Terms : T/T, Western Union

Supply Ability : 100,000 Sets per month

Delivery Time : 3-7 work days

Packaging Details : Carton packaging

Dimension : 159*97*38mm

Connection mode : 7P-9.5 barrier terminal

Output voltage : DC24V

Output current : 6.5A

Output accuracy : ±1%

Output efficiency : 89%

Contact Now

Pwm Pulse 6.5A PLC Switching Power Supply 24V Overvoltage Protection

159*97*38mm PLC Power Supply DC24V With Driver Chip Pwm Pulse Over Voltage And Short Circuit Protection

CM15024 industrial power supply adopt imported power supply dedicated driver chip, high precision high temperature resistant electronic components and international advanced PWM pulse width modulation technology, with short circuit, overload, over voltage, overheating and other protection functions.

Pwm Pulse 6.5A PLC Switching Power Supply 24V Overvoltage Protection

Installation	Screw fixation, vertically or paralleled installation
Dimension	1599738mm
Connection mode	7P-9.5 barrier terminal
Input voltage	88～264VAC or 125~373VDC
Input frequency	47～63HZ
Output voltage	DC24V
Output current	6.5A
Impulse current	60A/ 230VAC
Output accuracy	±1%
Output efficiency	89%
No-load consumption	＜0.5W
Defensive function	Short circuit/ over voltage/ overload protection
Manuals	Coolmay power supply user manual

Features

Advanced PWM pulse width modulation technology.
Imported switching power s upply dedicated driver chip.
Soft start current, effectively reducing transient voltage surges.
High temperature electrolytic capacitors are used to ensure system reliability.
120% full load aging test with strong output.
Built-in EMI and filter. Ripple and noise are minimal.
Short circuit protection, overload protection, over voltage protection and other functions.
Natural heat dissipation, stable performance and high reliability.
Average trouble-free working time up to 100,000 hours.

FAQ:

1) Are you a manufacturer or trade company?

We are both factory and trae company, we have engineers for study & design and workers for produce and operate etc, we could support you one-stop products and service.
2) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.
3) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 2-7 working days.
