Brand Name : Coolmay
Model Number : MT6050H
Certification : CE
Place of Origin : CHINA
MOQ : 1 pcs
Price : Negotiable
Payment Terms : T/T, Western Union, MoneyGra
Supply Ability : 100,000 Sets per month
Delivery Time : 3-8 working day
Packaging Details : Packed with standard carton box
COM port : 1 RS232 and 1 RS485
Protection Class : IP65 (front panel)
Consumption : 150mA*24V
Dimension : 146*88*25mm

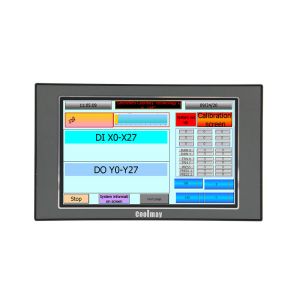

5" TFT MODBUS PROTOCOL INDUSTRIAL HUMAN MACHINE INTERFACE 4-WIRE RESISTIVE PANEL WITH DOWNLOAD PORT
Human-Machine Interface (HMI) connects industrial control equipment such as programmable logic controllers (PLC), frequency converters, DC speed regulators, and meters. It is a digital device that uses the display screen to write working parameters or input operating commands through an input unit (such as a touchpad, a mouse, etc.) to realize information
INFORAMTION OF TK6050FH HMI Control PANEL:
Parameter of TK series HMI Contral Panel:
| Specs | Dimension | 146*88*25mm |
| Cutout size | 135*72mm | |
| Display size | 108*65mm | |
| Weight(kg) | Appox. 0.33 kg | |
| Display | Display | 5” TFT |
| Resolution (pixels) | 800*480 | |
| Brightness | 300cd/m2 | |
| Contrast ratio | 400:1 | |
| Backlight | LED | |
| Backlight time | 60,000 h | |
| Display color | 65536 true colors | |
| Touch type | 4-wire resistive panel | |
| Storage | ROM | 128MB |
| RAM | 64MB | |
| CPU | ARM9 core 400MHz | |
| Operating system | WINCE 5.0 | |
| Interface | USB port | USB 2.0×1 (USB port and can be connected to external USB flash drive, mouse, etc.) |
| Download port | Yes (Mini type B male port cable for program download | |
| Ethernet port | Optional | |
| COM port | 1 RS232 and 1 RS485 | |
| Protocol | Support MODBUS, free port and common PLC communication Protocol | |
| Other | Audio | Optional |
| Calendar | Yes | |
| Input Voltage | Default as DC12~24±10%V | |
| Consumption | 150mA*24V | |
| Protection Class | IP65 (front panel) | |
| Temperature | Ambient environment: 0~50℃ | Storage environment: -20~70℃ | |
| Humidity | 20%~90% RH | |
| Certification | CE | |
| Software | CoolMay HMI programming software | |
Product Features:


Packaging:
The products will be under testing for 1-3 days and packed with carton box .
By courier, door to door
 For samples, the package will be delivered by DHL/UPS/FedEx/EMS express. Usually it will take 3-7 days to your location.
 Post service
 If you are not hurry but need economical delivery, we can go with packet channel. The delivery time depends on your location.
 Air shipping or by sea
 If bulk order, the packages will be delivered by air shipping or by ship.
FAQ
1) Are you a manufacturer or trade company?
 We are manufacturer of PLC,HMI,HMI PLC combo and other industrial products for over 16 years, we have engineers for study & design
 and workers for produce and operate etc, we could support you one-stop products and service.
 2) Do you have a CE certificate?
 Yes for the products we exported, we could offer the CE for your Customs.
 3) How long about the delivery?
 It depends on the order details, and usually, we could support the delivery within 2-7 working days after payment confirmed.
 4) Payment terms:
 We accept TT Bank Transfer, Paypal, Credit Card on Alibab, Western Union ect.
Coolmay develops and manufactures HMI, PLC, HMI+PLC all-in-one, modules with Coolmay own brand. We offer services anytime when you need help.

|   |
